Dispersion
In mechanical process engineering, dispersion refers to the breaking down of agglomerated solids, usually powder, into fine particles and their subsequent distribution in another medium (liquid or gas). When particles or materials are “agglomerated”, this means that they have come together to form larger groups or clumps.
The aim of dispersion is to achieve a uniform mixture of the particles, to reduce the size of the particles or to increase the reaction speed by increasing the particle surface. In this context, dispersing machines are often important because they are used to achieve dispersion through the application of shear forces, stretch forces or other techniques.
Dispersion is an important process in many industrial applications. These include the production of paints, varnishes, pharmaceuticals, yogurt, baby and other foodstuffs plus many other products.
YTRON-XC - Energy efficiency through YTRON technology
Our YTRON-XC powder dissolving system, specifically developed for dispersing dry materials, is a prime example of our commitment to energy efficiency. Compared to some of our competitors' machines, our InLine powder dispersing machines only require half the connected load. The key is to separate the pumping action from the dispersing action. This process usually saves time and money.
Own pumping effect
The downstream pump wheel supports the discharge of the dispersion.

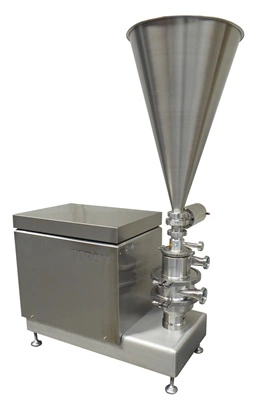

![[Translate to English:] YTRON-XC mit Trichter](/fileadmin/_processed_/5/2/csm_Maschine-20060124_XC1_mTr_und_Pneumatik_26c5deafad.webp "[Translate to English:] YTRON-XC")
Agglomerated powder? No problem with YTRON-XC
One of the biggest challenges when dispersing powders is their tendency to clump or stick together. YTRON offers you the option of introducing various dry substances inline and dispersing them in one pass. As a rule, the special rotor/stator technology prevents lump formation and eliminates agglomeration.
The dispersion process: efficient and gentle
Our powder dissolving system works in two stages for optimal results. In the first stage, the reactor creates a strong negative pressure and sucks in the dry substances. Immediately after contact with the liquid phase, these are thrown against the baffle plates of the stator and finely dispersed or deagglomerated by high-frequency impact. The effective dispersion with low input of shear forces ensures that the product properties are retained. In the second stage, the already homogeneous, wetted product is discharged without any problems.
![[Translate to English:] YTRON-XC Dispergierprozess](/fileadmin/_processed_/a/9/csm_YTRON-XC_Dispergierprozess_78ae7396cb.jpg "[Translate to English:] YTRON-XC Dispergierprozess")
With YTRON-XC you save time and money
The advantages of the YTRON-XC powder dissolving system are clear: you need less energy and time to disperse powders than in conventional processes. This leads to economic savings - with every hour of production. At the end of the year, this becomes clearly noticeable and the calculation pays off.
Advantages of YTRON-XC at a glance
- Complete wetting of even the most "difficult to wet" powders phase in a single pass
- Concentrations up to over 40% possible in a single pass
- No additional air intake
- Minimum process time
- High capacity with low energy consumption
- Significant savings through intensive incorporation of the powders
- No damage to the product because of the impact effect is opposed to high shear
- Problem-free loading whether from BigBags, silos or sacks
- Cleaning: Suitable for CIP and SIP
- Modular configurable to suit your needs
Possible powders for dispersion with YTRON-XC
The YTRON-XC is ideal for the incorporation of high concentrations of powders but with low energy consumption.
Process options
Regardless of whether you prefer Batch processes for high process reliability or In-Line processes for short process times, our powder dissolving system offers the optimal solution.
![[Translate to English:] YTRON-XC Batch-Prozess](/fileadmin/_processed_/1/2/csm_YTRON-XC_Batch-Prozess_7e6f8c92ab.webp "[Translate to English:] YTRON-XC Batch-Prozess")
![[Translate to English:] YTRON-XC InLine-Prozess](/fileadmin/_processed_/2/c/csm_YTRON-XC_InLine-Prozess_d3018641a2.webp "[Translate to English:] YTRON-XC InLine-Prozess")
